ADAPT STRATUM 101AST..1-R2015_/_ _ _
Specially developed to solve the installation difficulties in the process of replacing light fixtures.
Customized exterior trim diameter from 145 mm up to 175 mm, depending on the installation needs.
Protection rating against dust and moisture: IP54 from underneath.
White painted aluminium reflector. Sandblasted metallised aluminium reflector available as option.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Intermediate tempered frosted glass .
Remote driver supplied.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation.
DOWNLOADS
ACCESSORIES AND FINISHES

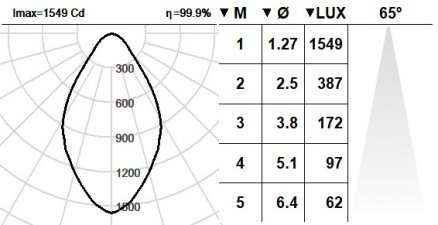

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1817lm
- Luminaire efficiency: 75 lm/W
- Light source luminous flux: 3245lm
- CRI: >90 R9 62
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 63 º
- This product contains a light source of energy efficiency class: E
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 852
UGR: C0º= 25,3 | C90º= 25,3 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 54
- IK: IK05
- Incandescent filament: 850 ºC
- Recessed diameter: 135<>165mm
- Luminaire diameter: 145<>175mm
- Height: 95 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 24,2 W
- Light source power: 21,8 W
- Constant current: 700 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 54
- IK: IK05
- Incandescent filament: 850 ºC
- Recessed diameter: 135<>165mm
- Luminaire diameter: 145<>175mm
- Height: 95 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
