CHESS 101CHS.1-R2331
Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.
Square frameless design for plasterboard ceilings available in 80mm.
Powder painted body available in assorted finishes, customized RAL under request.
To complete the effect of this luminaire, it is suggested that the interior be painted the same RAL colour as the ceiling.
Honeycomb louver accessory to improve visual comfort [reference M6.A0050].
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0070].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through aluminium heat sink diffuser.
Mounted to the ceiling by two fixing points with screws.
Luminaire luminous flux: 1220lm
Luminaire connected power: 11,13 W
Luminaire efficiency: 110 lm/W
Light source luminous flux: 1220lm
Light source power: 9,98 W
mA: 300 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90 R9 54

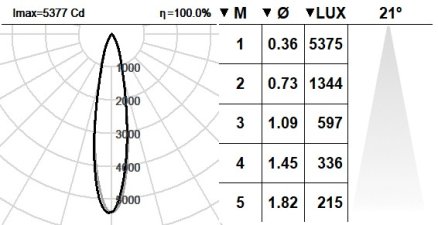

Beam angle: 24
Cd/Klm: 4408
This product contains a light source of energy efficiency class: F
LED reliability at nominal Ta = 25ºC: 54.000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Embedding dimensions: 81mm x 81mm
Luminaire dimensions: 80mm x 80mm
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
