HELIX 101HEX.1-I2105
Interior aluminium reflector to control and direct the light.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Decorative drop glass accessory to be attached to the reflector [ reference M1.A0350].
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter steel cord suspension as standard and Transparent electronic wire. Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track [reference M3.B].
Luminaire luminous flux: 2466lm
Luminaire connected power: 24,2 W
Luminaire efficiency: 102 lm/W
Light source luminous flux: 3245lm
Light source power: 21,8 W
mA: 700 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >90 R9 62

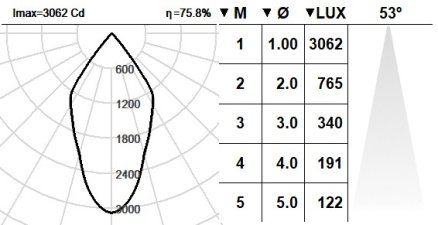

Beam angle: 53
Cd/Klm: 944
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
LED reliability at nominal Ta = 25ºC: 60.000h L90B10
Class: 1
IP: 20
Incandescent filament: 850
Luminaire diameter: 350mm
Weight: 4.3 Kg
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
