HELIX 101HEX.1-I2106
Interior aluminium reflector to control and direct the light.
Powder painted aluminium body available in assorted finishes, customized RAL or NCS upon request.
Decorative drop glass accessory to be attached to the reflector [ reference M1.A0350].
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter steel cord suspension as standard and Transparent electronic wire. Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track [reference M3.B].
DOWNLOADS
ACCESSORIES AND FINISHES

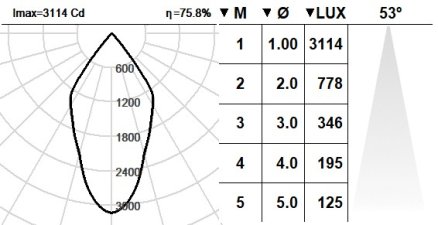

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 2508lm
- Luminaire efficiency: 104 lm/W
- Light source luminous flux: 3300lm
- CRI: >90 R9 64
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 53 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 944
UGR: C0º = 13,2 | C90º = 13 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 350mm
- Height: 380+1000 mm Kg
- Weight: 4,3 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 24,2 W
- Light source power: 21,8 W
- Constant current: 700 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
The full range of RAL Classic colours (216 colours) and the complete NCS colour system (1,950 colours) are available upon request.
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 350mm
- Height: 380+1000 mm
- Weight: 4,3 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
The full range of RAL Classic colours (216 colours) and the complete NCS colour system (1,950 colours) are available upon request.
