PRISMA 101PSM.1-I2090
Neutral cubic body in dimensions 225mm x 225mm.
High purity matt anodised aluminium reflector.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Flush decorative glass available as accessory.
Drop glass accessory available in assorted colours [reference M1.C0225].
Drop metal square accessory available in assorted colours [reference M1.E0225].].
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Mounting to the ceiling plate with two securing points. Cable entry from the top of the fixture.
Luminaire luminous flux: 1624lm
Luminaire connected power: 11,9 W
Luminaire efficiency: 136 lm/W
Light source luminous flux: 1980lm
Light source power: 10,66 W
mA: 350 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

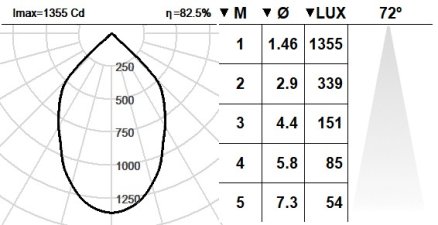

Beam angle: 72
Cd/Klm: 684
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
LED reliability at nominal Ta = 25ºC: >60000h L90B10
Class: 1
IP: 20
Incandescent filament: 850
Luminaire dimensions: 225mm x 225mm
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
