QUADRATUM 101QDM.1-R2007
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or general lighting.
Square frameless design for plasterboard ceilings available in 180mm x 180mm.
Powder painted aluminium frame available in assorted finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner shade should be painted the same RAL colour as the ceiling.
High-purity matt anodised aluminium reflector to obtain the best photometric results.
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heatpipes.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
Square frameless design for plasterboard ceilings available in 180mm x 180mm.
Powder painted aluminium frame available in assorted finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner shade should be painted the same RAL colour as the ceiling.
High-purity matt anodised aluminium reflector to obtain the best photometric results.
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heatpipes.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
DOWNLOADS
ACCESSORIES AND FINISHES

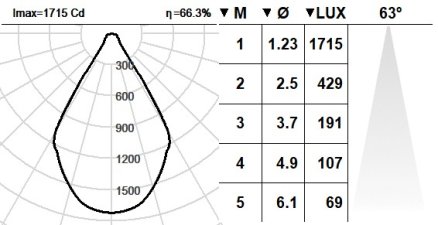

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1904lm
- Luminaire efficiency: 111 lm/W
- Light source luminous flux: 2885lm
- CRI: >80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 63 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 595
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Embedding dimensions: 182x182mm
- Luminaire dimensions: 180x180mm
- Height: 152 mm Kg
- Weight: 1.58 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 17,1 W
- Light source power: 15,43 W
- Constant current: 500 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Embedding dimensions: 182x182mm
- Luminaire dimensions: 180x180mm
- Height: 152 mm
- Weight: 1.58 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
