QUADRATUM 101QDM.1-R2010
Square frameless design for plasterboard ceilings available in 180mm x 180mm.
Powder painted aluminium frame available in assorted finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner shade should be painted the same RAL colour as the ceiling.
High-purity matt anodised aluminium reflector to obtain the best photometric results.
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heatpipes.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
Luminaire luminous flux: 1538lm
Luminaire connected power: 17,1 W
Luminaire efficiency: 90 lm/W
Light source luminous flux: 2330lm
Light source power: 15,43 W
mA: 500 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90 R9 64

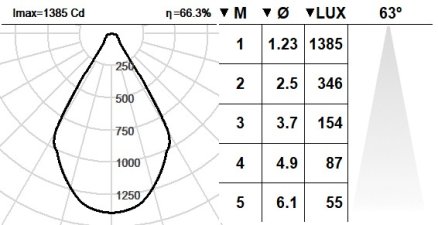

Beam angle: 63
Cd/Klm: 595
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
LED reliability at nominal Ta = 25ºC: >60000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Embedding dimensions: 182mm x 182mm
Luminaire dimensions: 180mm x 180mm
Weight: 1.58 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
