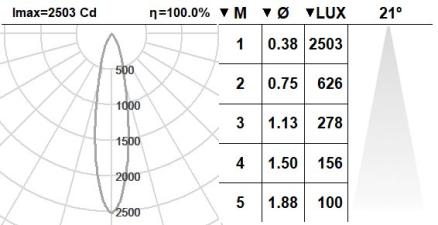

![102NCL.1-R619 102NCL.1-R619](https://www.rovasi.com/media/cache/resolve/frontend_article_photometry_small/uploads/article/photometry/102NCL-1-R619-65e518d31c7ce.jpg)
NUCLEONS 102NCL.1-R619
![CLASS2 CLASS2](/uploads/product-accessory/icon/CLASS2-6596a790e1bfa.jpg)
![IP20 IP20](/uploads/product-accessory/icon/IP20-659695987b21e.jpg)
![FIL850 FIL850](/uploads/product-accessory/icon/FIL850-6596a7ec51ba6.jpg)
![INST INST](/uploads/product-accessory/icon/INST-6596958d96e56.jpg)
![+RAL +RAL](/uploads/product-accessory/icon/RAL-6596a71f64ac8.jpg)
![INFLA INFLA](/uploads/product-accessory/icon/INFLA-65969566e89e4.jpg)
![CE](/build/images/icons/ce.6edefc81.png)
Circular design in diameter 110mm.
White powder painted aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.J0110].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
Luminaire luminous flux: 575lm
Luminaire connected power: 7.69 W
Luminaire efficiency: 75 lm/W
Light source luminous flux: 670lm
Light source power: 6.6 W
mA: 200 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90
Beam angle: 21
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >50000h L70B50
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 100mm
Luminaire diameter: 110mm
Weight: 0.31 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
![D102NCL_SLA D102NCL_SLA](https://www.rovasi.com/media/cache/frontend_article_schema_small/uploads/subproduct/image/D102NCL-SLA-65e4e1d006c19.jpg)
![DP102NCL_SLA DP102NCL_SLA](https://www.rovasi.com/media/cache/frontend_article_schema_small/uploads/subproduct/image/DP102NCL-SLA-65e4e1cbba989.jpg)
![102NCL.1-R619 102NCL.1-R619](https://www.rovasi.com/media/cache/resolve/frontend_article_photometry_small/uploads/article/photometry/102NCL-1-R619-65e518d31c7ce.jpg)
Downloads
All RAL colours are available under request
