BSM 102BXS.1-R1805
Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or ambient lighting.
Round design with trimless appearance in diameter 72mm.
Aluminium body and interior circle powder painted in various finishes, customized RAL under request.
To complete the effect of this luminaire, it is suggested that the circle be painted the same RAL colour as the ceiling.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0035].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
Remote driver included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
3 hours battery available as option*.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps.
DOWNLOADS
ACCESSORIES AND FINISHES

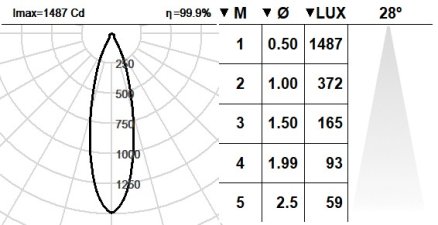

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 511lm
- Luminaire efficiency: 98 lm/W
- Light source luminous flux: 730lm
- CRI: >90 R9 72
- Colour temperature: 4000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 28 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 100.000h L90B10
- Cd/Klm: 2910
UGR: C0º = 25 | C90º = 25 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 66mm
- Luminaire diameter: 72mm
- Height: 83 mm Kg
- Weight: 0,245 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 5,22 W
- Light source power: 4,69 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM + 3h battery
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 66mm
- Luminaire diameter: 72mm
- Height: 83 mm
- Weight: 0,245 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
