PENDALUX 102PDX.1-I2223
Neutral cylindrical body in diameter 87 mm.
Sandblasted metallised aluminium reflector.
Powder painted aluminium body available in assorted finishes, customized RAL or NCS upon request.
Built-in driver, included. Electronic option for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter transparent electrical wire.
Mounted to the ceiling by cylindrical ceiling rose.
Cable entry from the top of the fixture.
PENDALUX can be combined with the SURFACELUX surface-mounted collection to get a harmonious finish.
DOWNLOADS
ACCESSORIES AND FINISHES

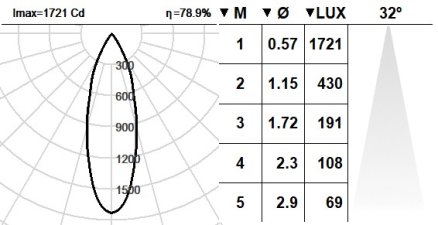

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 687lm
- Luminaire efficiency: 98 lm/W
- Light source luminous flux: 870lm
- CRI: >80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 32 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 100.000h L90B10
UGR: C0º= 15,7 | C90º= 15,2 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 87 mm
- Height: 185+1000 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 6,98 W
- Light source power: 4,48 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: Light Metallic Grey
The full range of RAL Classic colours (216 colours) and the complete NCS colour system (1,950 colours) are available upon request.
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 87 mm
- Height: 185+1000 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: Light Metallic Grey
The full range of RAL Classic colours (216 colours) and the complete NCS colour system (1,950 colours) are available upon request.
