PENDALUX 102PDX.1-I2224
Pendant downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Neutral cylindrical body in diameter 87 mm.
Sandblasted metallised aluminium reflector.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Built-in driver, included. Electronic option for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter transparent electrical wire.
Mounted to the ceiling by cylindrical ceiling rose.
Cable entry from the top of the fixture.
SURFACELUX can be combined with the PENDALUX pendant line to get a harmonious finish.
Neutral cylindrical body in diameter 87 mm.
Sandblasted metallised aluminium reflector.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Built-in driver, included. Electronic option for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter transparent electrical wire.
Mounted to the ceiling by cylindrical ceiling rose.
Cable entry from the top of the fixture.
SURFACELUX can be combined with the PENDALUX pendant line to get a harmonious finish.
DOWNLOADS
ACCESSORIES AND FINISHES

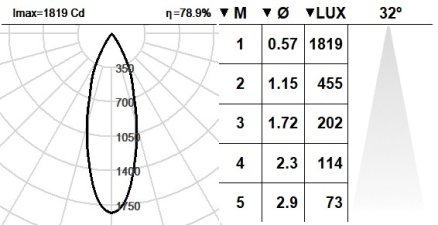

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 727lm
- Luminaire efficiency: 104 lm/W
- Light source luminous flux: 920lm
- CRI: >80
- Colour temperature: 4000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 32 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 100.000h L90B10
- UGR: C0º = 15,9 | C90º = 15,3
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 87 mm
- Height: 185+1000 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 6,98 W
- Light source power: 4,48 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
D: DALI-2/switchDIM/corridorFUNCTION
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 850 ºC
- Luminaire diameter: 87 mm
- Height: 185+1000 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
