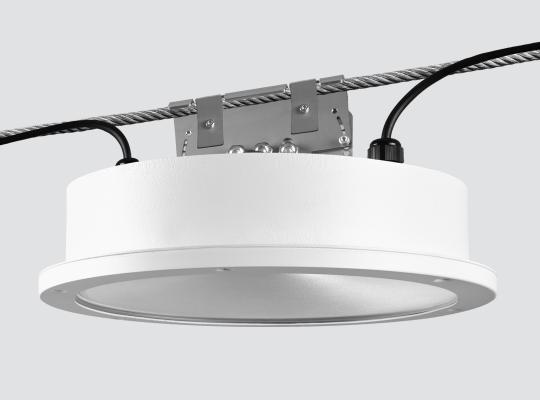

SAUCER 102SCR.1.01-I2090

CLASS1 IP65 IK10 FIL850 ACDC INST +RAL CE

Vandal-resistant pendant downlights with symmetrical light distribution.
Circular design in diameter 345mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust body made of die-cast aluminium and trim coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
Sandablasted metallized aluminium reflector.
Impact resistant cover made of clear polycarbonate (IK10) as standard.
Temperature resistant silicone rubber gasket.
IP67 venting valve to reduce condensation.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws [reference F2.A0345+F2.A1].
Built-in driver, included. Ambient temperature: up to 50ºC.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation via the fixture body itself.
Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Cable entry from the top of the fixture. Double cable gland entry for installation in series.

F102SCR

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 1564lm
  • Luminaire efficiency: 131 lm/W
  • Light source luminous flux: 1980lm
  • CRI: >80
  • Colour temperature: 2700K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: 85
  • This product contains a light source of energy efficiency class: D
  • LED reliability at nominal Ta = 25ºC: 100.000h L90B10
  • Cd/Klm: 465
102SCR.1.01-I2090

TECHNICAL DATA

  • Class: I
  • IP: 65
  • Incandescent filament: 850 ºC
  • Luminaire diameter: 345mm
  • Weight: 3.84 Kg
D102SCR DP102SCR

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 11,9 W
  • Light source power: 10,66 W
  • Constant current: 350 mA

ELECTRONIC EQUIPMENT:

  • S: On/Off (AC/DC, NOT looping through capable)

  • SE: On/Off (AC/DC) + Battery 3h

  • D: DALI-2/switchDIM/corridorFUNCTION

  • DE: DALI-2/switchDIM/corridorFUNCTION + 3 hours battery

  • B: Bluetooth-Casambi [ 15m ]

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 80 Corten 80 Corten
  • 90 : RAL6005 Moss Green textured 90 : RAL6005 Moss Green textured
  • 7: RAL9006: White Aluminium textured 7: RAL9006: White Aluminium textured
  • 4: RAL7016: Anthracite Grey textured 4: RAL7016: Anthracite Grey textured
  • 2: RAL9005: Jet Black textured 2: RAL9005: Jet Black textured
  • 1: RAL9010: Pure White textured 1: RAL9010: Pure White textured

All RAL colours are available under request

TECHNICAL DATA

  • Class: I
  • IP: 65
  • Incandescent filament: 850 ºC
  • Luminaire diameter: 345mm
  • Weight: 3.84 Kg
D102SCR DP102SCR

STANDARD FINISHES

  • 80 Corten 80 Corten
  • 90 : RAL6005 Moss Green textured 90 : RAL6005 Moss Green textured
  • 7: RAL9006: White Aluminium textured 7: RAL9006: White Aluminium textured
  • 4: RAL7016: Anthracite Grey textured 4: RAL7016: Anthracite Grey textured
  • 2: RAL9005: Jet Black textured 2: RAL9005: Jet Black textured
  • 1: RAL9010: Pure White textured 1: RAL9010: Pure White textured

All RAL colours are available under request
