STRATUM 102STR.1.02-R2018

CLASS2 IP54 IK05 FIL850 INST +RAL INFLA CE

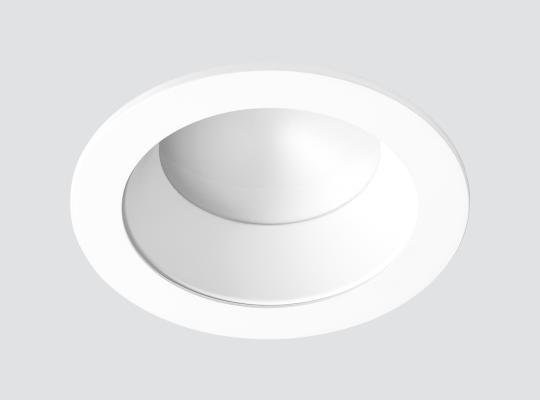

Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or ambient lighting.
Circular design in diameter 150mm.
Protection rating against dust and moisture: IP54 from underneath.
White painted aluminium reflector. Sandblasted metalized aluminium reflector available as option.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Intermediate tempered frosted glass .
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation.
F101STR

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

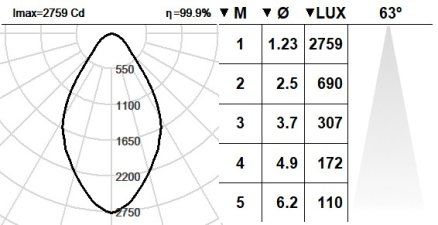

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 3237lm
  • Luminaire efficiency: 87 lm/W
  • Light source luminous flux: 5780lm
  • CRI: >80
  • Colour temperature: 2700K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: 63
  • This product contains a light source of energy efficiency class: C
  • LED reliability at nominal Ta = 25ºC: 60.000h L90B10
  • Cd/Klm: 852
102STR.1.02-R2018

TECHNICAL DATA

  • Class: II
  • IP: 54
  • Incandescent filament: 850 ºC
  • Recessed diameter: 140mm
  • Luminaire diameter: 150mm
  • Weight: 1.28 Kg
D102STR DPnoimatge

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 37,1 W
  • Light source power: 33,4 W
  • Constant current: 1050 mA

ELECTRONIC EQUIPMENT:

  • K: On/Off (basic)

  • S: On/Off (AC/DC + looping through)

  • SE: On/Off (AC/DC+looping) + 3h battery

  • D: DALI-2/switchDIM/corridorFUNCTION

  • DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

TECHNICAL DATA

  • Class: II
  • IP: 54
  • Incandescent filament: 850 ºC
  • Recessed diameter: 140mm
  • Luminaire diameter: 150mm
  • Weight: 1.28 Kg
D102STR DPnoimatge

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
