BSM 103BSM.2-R641
Circular design with trimless appearance in diameter 88mm.
Interior circle powder painted in black.
Deep regressed light source for minimal glare to ensure visual comfort.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0088].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.
Luminaire luminous flux: 739lm
Luminaire connected power: 9.77 W
Luminaire efficiency: 76 lm/W
Light source luminous flux: 890lm
Light source power: 8.8 W
mA: 250 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >90

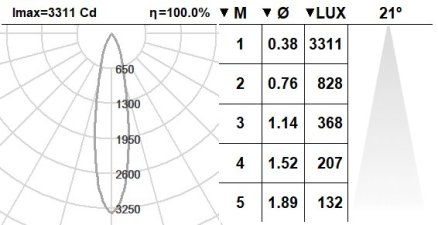

Beam angle: 21
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >50000h L70B50
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 82mm
Luminaire diameter: 88mm
Weight: 0.26 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
2: RAL9005: Jet Black
All RAL colours are available under request
