ADAPT ACTIVO 103AAC.1-R2001_/_ _ _
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Specially developed to solve the installation difficulties in the process of replacing light fixtures.
Adjustable to 20º.
Customized exterior trim diameter from 165mm up to 195mm, depending on the installation needs.
This luminaire is suitable for recessed diameters ranging from 155mm to 185mm.
Aluminium reflector in assorted finishes: facetted metallised or sandblasted metallised depending on the beam angle outcome.
Powder paintedaluminium trim available in assorted finishes, customized RAL under request.
Remote driver supplied.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 40mm.
DOWNLOADS
ACCESSORIES AND FINISHES

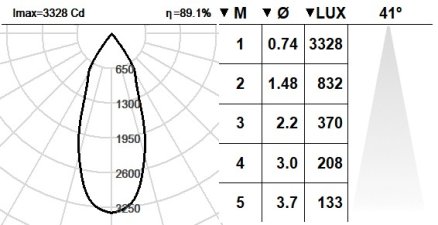

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1816lm
- Luminaire efficiency: 153 lm/W
- Light source luminous flux: 2040lm
- CRI: >80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 40 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 1631
UGR: C0º= 16,9 | C90º= 16,9 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 155<>185mm
- Luminaire diameter: 165<>195mm
- Height: 135 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 11,9 W
- Light source power: 10,66 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 155<>185mm
- Luminaire diameter: 165<>195mm
- Height: 135 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
