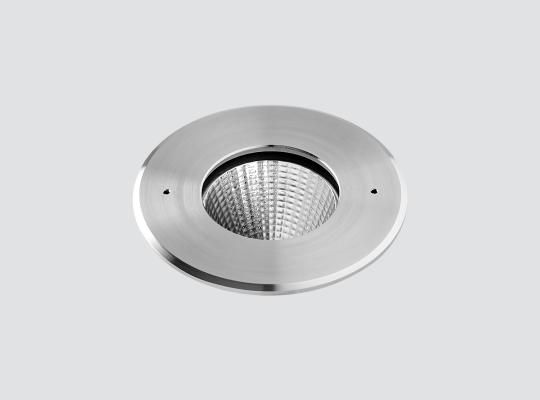

LOTUS 103LTS.8.01-R1850






Inground buried uplights with symmetrical light distribution.
Circular design available in 90mm diameter.
Protection rating against dust and moisture: entire IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Load supported: 6600Kg
Robust and corrosion-resistant because of its 18μ metalized aluminium housing and 316L stainless steel marine grade trim.
10mm tempered protection glass clear as standard.
Temperature resistant silicone rubber gasket.
IP67 venting valve to reduce condensation.
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
IP67 venting valve to reduce condensation.
Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing points.
IP68 connector to be ordered separately [reference F3.A3 (On/Off)].
Circular design available in 90mm diameter.
Protection rating against dust and moisture: entire IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Load supported: 6600Kg
Robust and corrosion-resistant because of its 18μ metalized aluminium housing and 316L stainless steel marine grade trim.
10mm tempered protection glass clear as standard.
Temperature resistant silicone rubber gasket.
IP67 venting valve to reduce condensation.
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
IP67 venting valve to reduce condensation.
Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing points.
IP68 connector to be ordered separately [reference F3.A3 (On/Off)].

DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 560lm
- Luminaire efficiency: 117 lm/W
- Light source luminous flux: 800lm
- CRI: >80
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 41 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 50.000h L90B10

TECHNICAL DATA
- Class: II
- IP: 67
- Incandescent filament: 850 ºC
- Recessed diameter: 85 mm
- Luminaire diameter: 90 mm
- Height: 160 mm Kg
- Weight: 0.67 Kg


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 4,8 W
- Light source power: 4,32 W
- Constant current: 140 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium -
8: Stainless Steel 316L: Marine grade
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 67
- Incandescent filament: 850 ºC
- Recessed diameter: 85 mm
- Luminaire diameter: 90 mm
- Height: 160 mm
- Weight: 0.67 Kg


STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium -
8: Stainless Steel 316L: Marine grade
All RAL colours are available under request
