TEKNO



104TKN.1-R619

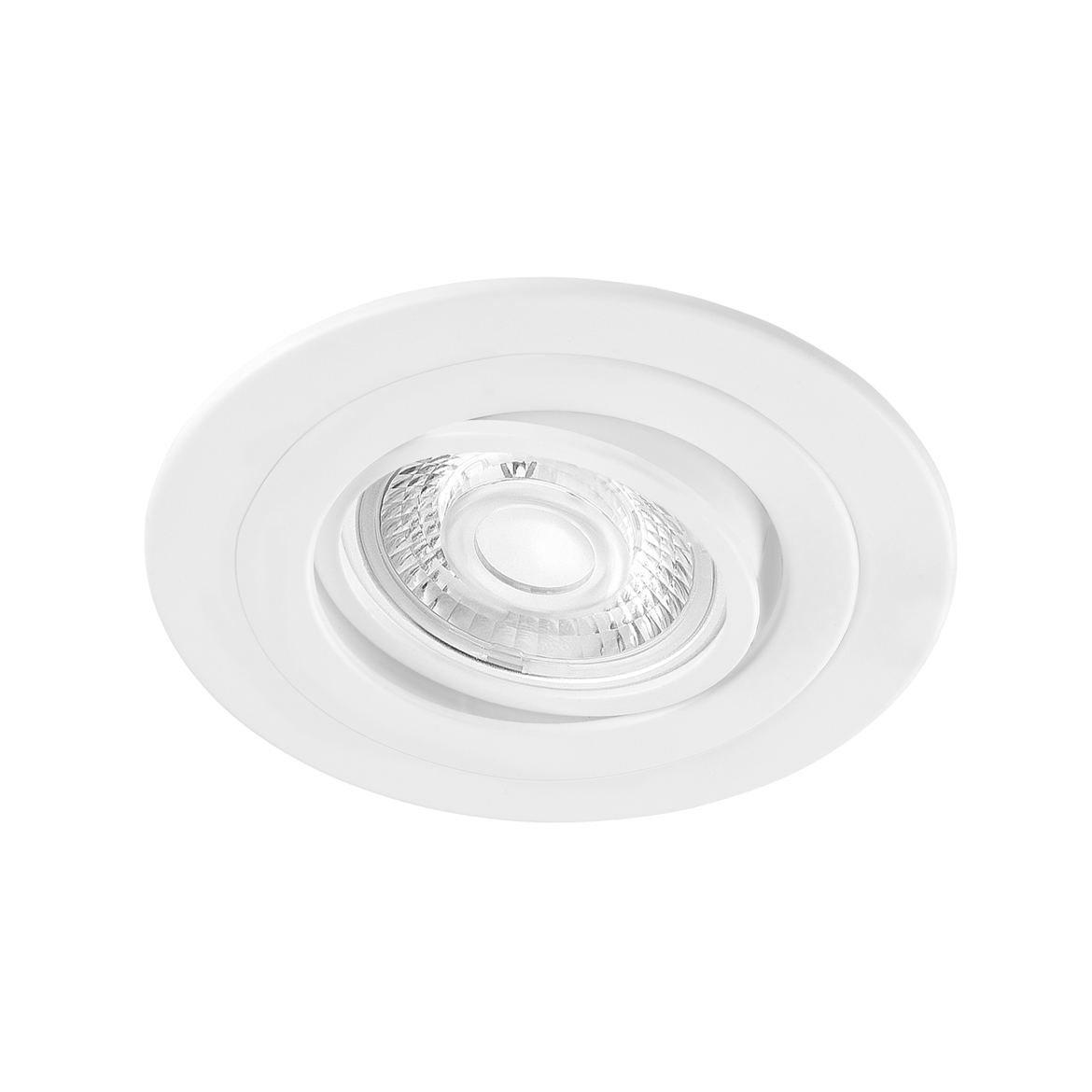

Recessed ceiling-mounted small downlight with symmetrical light distribution to achieve an effective task, accent.
Emergency kit as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminous flux of the light source: 670lm

Luminous flux of the luminaire:  670lm

Luminaire efficiency: 87 lm/W

Light source power: 6.6 W

Luminaire power: 7.69 W

mA: 200 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

Beam angle: 24

Cd/ Klm: 3746

Imax Cd: 2510

UGR: <16

Photobiological safety group: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >50000h L70B50

Class: 2

IP: 20

Incandescent filament: 850°

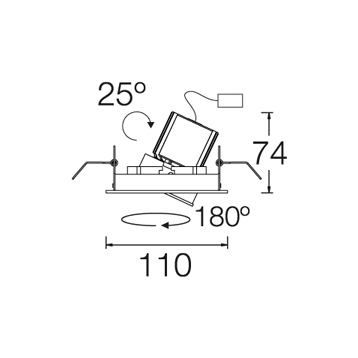

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.34 Kg

Electronic Equipment:
S: On/Off
SE: On/Off + Emergency Kit [class I][E-KIT embedding diameter: 84mm]
D: DALI/DSI/switchDIM
DE: DALI/DSI/switchDIM+E-Kit [class I][E-KIT embedding diameter: 84mm]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I][E-KIT embedding diameter: 84mm]
B: Bluetooth Casambi
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
