LOTUS 104LTS.8.02-R1802

CLASS2 IP67 10 FIL850 INST +RAL CE
Recessed buried uplight with symmetrical light distribution.
Circular design in diameter: 120mm.
IP67 protection rating that enables it to resist immersion to a depth of 1m.
Protection rating of resistance to harmful mechanical impacts: IK10.
Load supported: 6600 Kg. It can be driven over by vehicles with pneumatic tyres.
Robust and corrosion-resistant black painted aluminium housing with C5-M special coating for environments with very high corrosivity. 316L stainless steel marine grade trim.
Sandblasted metalized aluminium reflector.
10 mm tempered protection frosted glass.
Temperature resistant silicone rubber gasket.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws [reference F2.A0120 + F2.A1].
Remote driver supplied.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ground mounted by two fixing holes.
Supplied with aluminium insertion tube as standard. Insertion tube for flush installation as accessory [reference  M3.C0120].
Pre-wiring of 0.5 metres cable 2x1,5mm2.
IP68 connector to be ordered separately [reference F3.A3 (On/Off).

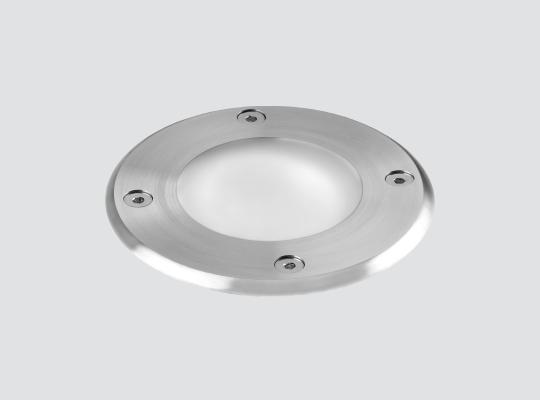

F104LTS

DOWNLOADS

DATA SHEET
Description .txt
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 297lm
  • Luminaire efficiency: 61 lm/W
  • Light source luminous flux: 825lm
  • CRI: >90 R9 72
  • Colour temperature: 4000K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: 76 º
  • This product contains a light source of energy efficiency class: D
  • LED reliability at nominal Ta = 25ºC: 50.000h L90B10
No image

TECHNICAL DATA

  • Class: II
  • IP: 67
  • Incandescent filament: 850 ºC
  • Recessed diameter: 110 mm
  • Luminaire diameter: 120 mm
  • Height: 201 mm Kg
  • Weight: 1.33 Kg
D104LTS DPnoimatge

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 4,85 W
  • Light source power: 4,37 W
  • Constant current: 140 mA

ELECTRONIC EQUIPMENT:

  • S: On/Off

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium
  • 8: Stainless Steel 316L: Marine grade 8: Stainless Steel 316L: Marine grade

All RAL colours are available under request

TECHNICAL DATA

  • Class: II
  • IP: 67
  • Incandescent filament: 850 ºC
  • Recessed diameter: 110 mm
  • Luminaire diameter: 120 mm
  • Height: 201 mm
  • Weight: 1.33 Kg
D104LTS DPnoimatge

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium
  • 8: Stainless Steel 316L: Marine grade 8: Stainless Steel 316L: Marine grade

All RAL colours are available under request
