Recessed ceiling-mounted downlight with asymmetrical lighting distribution to achieve an effective accent or ambient lighting.
Circular design in diameter 110mm.
Tilt version, adjustable to 20º.
Black powder painted aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Tempered protection glass, IP44 protection from underneath.
Remote driver included.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
Luminous flux of the light source: 560lm
Luminous flux of the luminaire: 504lm
Luminaire efficiency: 89 lm/W
Light source power: 5 W
Luminaire power: 5.66 W
mA: 150 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3

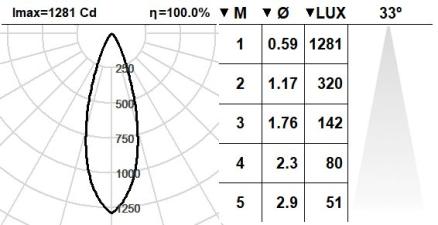

Beam angle: 33
Photobiological safety group: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >50000h L70B50
Incandescent filament: 850°
Recessed diameter: 100mm
Luminaire diameter: 110mm
Weight: 0.35 Kg
SE: On/Off + Emergency Kit [class I]
DE: DALI/DSI/switchDIM+E-KIT [class I]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I]
B: Bluetooth Casambi
There are accessories available for dimming devices.
*Add the suffix after the reference to indicate your electronic equipment choice.
