NUCLEONS



106NCL.1-R640


Recessed ceiling-mounted downlight with asymmetrical lighting distribution to achieve an effective accent or ambient lighting.
Circular design in diameter 110mm.
Tilt version, adjustable to 20º.
Black powder painted aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Tempered protection glass, IP44 protection from underneath.
Remote driver included.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminous flux of the light source: 840lm

Luminous flux of the luminaire:  767lm

Luminaire efficiency: 79 lm/W

Light source power: 8.8 W

Luminaire power: 9.77 W

mA: 250 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

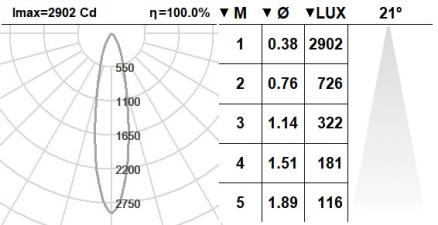

Beam angle: 21

UGR: <19

Photobiological safety group: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >50000h L70B50

Class: 2

IP: 44

Incandescent filament: 850°

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.35 Kg

Electronic Equipment:
S: On/Off
SE: On/Off + Emergency Kit [class I][E-KIT embedding diameter: 84mm]
D: DALI/DSI/switchDIM
DE: DALI/DSI/switchDIM+E-Kit [class I][E-KIT embedding diameter: 84mm]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I][E-KIT embedding diameter: 84mm]
B: Bluetooth Casambi
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
