BSQ 107BSS.1-R1083
Square design with frameless appearance in 80mm x 80mm.
Aluminium body and interior powder painted in various finishes, customized RAL under request.
To complete the effect of this luminaire, it is suggested that the interior be painted the same RAL colour as the ceiling.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0035].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option*.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps.
Luminaire luminous flux: 809lm
Luminaire connected power: 9.41 W
Luminaire efficiency: 86 lm/W
Light source luminous flux: 1190lm
Light source power: 8.5 W
mA: 250 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >90
Beam angle: 17
UGR: <19 under the below indicated parameters
Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.65
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: >53000h L80B50
Class: 2
IP: 20
Incandescent filament: 850
Embedding dimensions: 74mm x 74mm

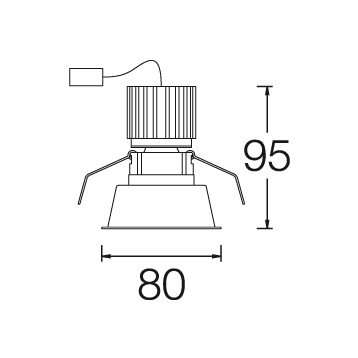

Luminaire dimensions: 80mm x 80mm
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
