Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design with trimless appearance in diameter 141mm.
Aluminium circle powder painted in assorted finishes, customized RAL under request.
To complete the effect of this fixture, it is suggested that the circle be painted the same RAL colour as the ceiling.
Aluminium interior reflector available in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0141].
Remote driver supplied.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.

Luminous flux of the light source: 2755lm

Luminous flux of the luminaire:  2039lm

Luminaire efficiency: 111 lm/W

Light source power: 17 W

Luminaire power: 18.33 W

mA: 500 mA

Colour temperature: 2700K

Chromaticity Tolerance: MacAdam 3

CRI: >80

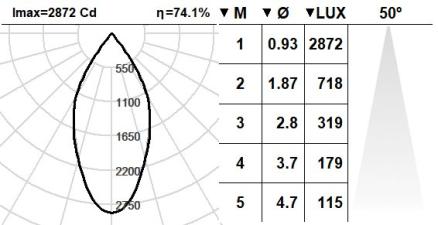

Beam angle: 50

Cd/ Klm: 1042

Imax Cd: 2871

UGR: <19

Photobiological safety group: 1

This product contains a light source of energy efficiency class: D

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850°

Recessed diameter: 137mm

Luminaire diameter: 141mm

Weight: 1.25 Kg

Electronic Equipment:
S: On/Off
D: DALI/DSI/switchDIM
There are accessories available for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
