NUCLEONS 108NCL.1-R690

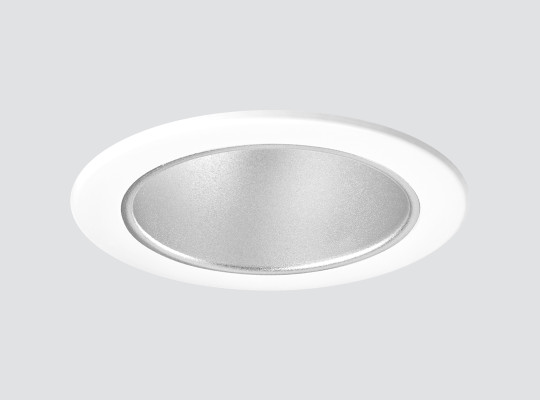

Circular design in diameter 110mm.
Metalized aluminium reflector in assorted finishes: specular or sandblasted depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0110].
Remote driver supplied. LED module for special applications.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
DOWNLOADS
ACCESSORIES AND FINISHES

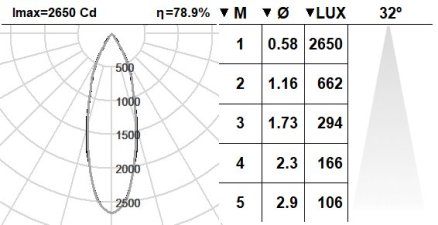

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1059lm
- Light source luminous flux: 1340lm
- CRI: >90
- Colour temperature: FRESH MEAT
- Chromaticity Tolerance: MacAdam 4
- Beam angle: 32 º
- LED reliability at nominal Ta = 25ºC: 51000h L80B10
- Cd/Klm: 1978
UGR: C0º = 14,3 | C90º = 13,7 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 100mm
- Luminaire diameter: 110mm
- Height: 98 mm Kg
- Weight: 1,09 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 18,33 W
- Light source power: 17 W
- Constant current: 500 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 100mm
- Luminaire diameter: 110mm
- Height: 98 mm
- Weight: 1,09 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
