CANDRA 108CND.1.02-I2802
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Circular design available in 356mm diameter.
Powder painted one piece aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.).
Tridonic high energy efficiency printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
CANDRA can be combined with PLACE pendant downlights and LEDA surface-mounted downlights to get a harmonious finish.
Luminaire luminous flux: 3180lm
Luminaire connected power: 23,6 W
Luminaire efficiency: 135 lm/W
Light source luminous flux: 3655lm
Light source power: 21,3 W
mA: 600 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >80

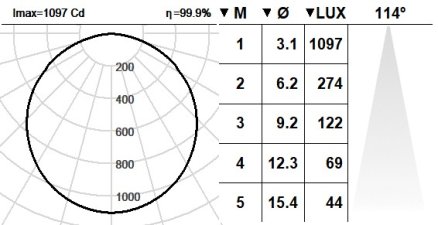

Beam angle: 114
Photobiological risk: 1
This product contains a light source of energy efficiency class: C
LED reliability at nominal Ta = 25ºC: 72.000h L80B10
Class: 1
IP: 20
Incandescent filament: 700
Recessed diameter: 359mm
Luminaire diameter: 356mm
Weight: 2.7 Kg
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
