CANDRA 108CND.1.02-I2803







Recessed ceiling mounted downlights with symmetrical light distribution to achieve an effective ambient lighting.
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Circular design available in 356mm diameter.
Powder painted one piece aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.).
Tridonic high energy efficiency printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
CANDRA can be combined with PLACE pendant downlights and LEDA surface-mounted downlights to get a harmonious finish.
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Circular design available in 356mm diameter.
Powder painted one piece aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.).
Tridonic high energy efficiency printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
CANDRA can be combined with PLACE pendant downlights and LEDA surface-mounted downlights to get a harmonious finish.

DOWNLOADS
ACCESSORIES AND FINISHES

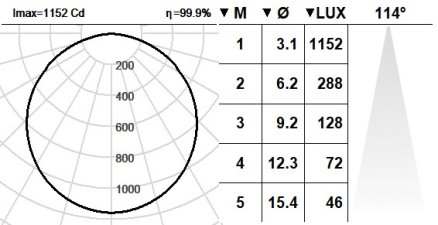

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 3341lm
- Luminaire efficiency: 142 lm/W
- Light source luminous flux: 3840lm
- CRI: >80
- Colour temperature: 4000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 114
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 72.000h L80B10

TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 700 ºC
- Recessed diameter: 359mm
- Luminaire diameter: 356mm
- Weight: 2.7 Kg


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 23,6 W
- Light source power: 21,3 W
- Constant current: 600 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 700 ºC
- Recessed diameter: 359mm
- Luminaire diameter: 356mm
- Weight: 2.7 Kg


STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
