QUADRATIC 109QTC.1-R1185
Square design available in 225mm x 225mm.
High-purity matt anodised aluminium reflector.
Powder painted die-cast aluminium frame available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.D0225].
Drop square glass accessory available in assorted colours [reference M1.C0225].
Drop square metal accessory available in assorted colours [reference M1.E0225].
LED frame accessory available in assorted colours [reference M1.D0225].
LED module Tunable White: 2700K-6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thicknesses up to 30mm.
DOWNLOADS
ACCESSORIES AND FINISHES

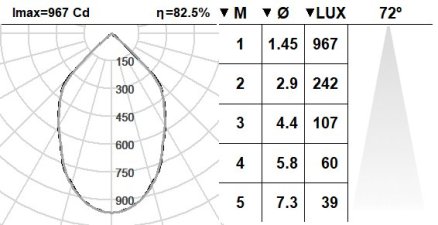

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1170lm
- Luminaire efficiency: 82 lm/W
- Light source luminous flux: 1410lm
- CRI: >90
- Colour temperature: 2700K-6500K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 74 º
- This product contains a light source of energy efficiency class: F
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 684
UGR: C0º = 16,6 | C90º = 16,5 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 210x210mm
- Luminaire dimensions: 225mmx225mm
- Height: 134 mm Kg
- Weight: 1.71 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 14,3 W
- Light source power: 11 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
T: Tunable White DALI-2/switchDIM/ColourSwitch
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 210x210mm
- Luminaire dimensions: 225mmx225mm
- Height: 134 mm
- Weight: 1.71 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
