BAFFLE EVOLUTION 109BFV.1-R1890

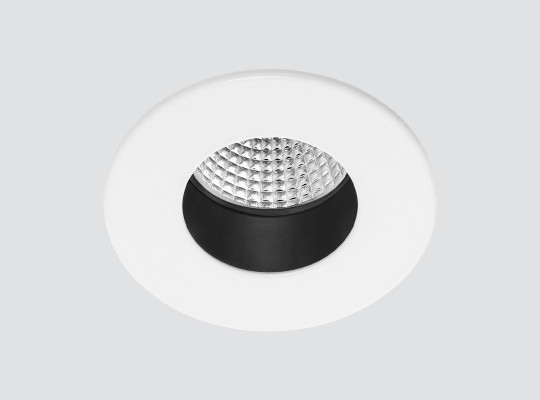

Recessed ceiling-mounted small downlight with symmetrical light distribution to achieve an effective accent lighting.
Circular design in diameter 85mm, interior aperture in diameter 45mm.
Internal cylindrical aluminium black baffle for minimal glare.
Deep regressed light source to ensure visual comfort.
Powder painted trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0085].
Accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.F0085].
This fixture is available in IP65 | IK07 protection from underneath, BAFFLE EVOLUTION SEALHoneycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050].
Remote driver included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
Circular design in diameter 85mm, interior aperture in diameter 45mm.
Internal cylindrical aluminium black baffle for minimal glare.
Deep regressed light source to ensure visual comfort.
Powder painted trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0085].
Accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.F0085].
This fixture is available in IP65 | IK07 protection from underneath, BAFFLE EVOLUTION SEALHoneycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050].
Remote driver included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire efficiency: 59 lm/W
- Light source luminous flux: 1980lm
- CRI: >90 R9 64
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 21 º
- This product contains a light source of energy efficiency class: E
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 78mm
- Luminaire diameter: 85mm
- Height: 121 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 16,15 W
- Light source power: 14,54 W
- Constant current: 450 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM + 3h battery
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 78mm
- Luminaire diameter: 85mm
- Height: 121 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
