BSM 109BXS.1-R1811
Round design with trimless appearance in diameter 72mm.
Aluminium body and interior circle powder painted in various finishes, customized RAL under request.
To complete the effect of this luminaire, it is suggested that the circle be painted the same RAL colour as the ceiling.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0035].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option*.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps.
Luminaire luminous flux: 750lm
Luminaire connected power: 8,91 W
Luminaire efficiency: 84 lm/W
Light source luminous flux: 1190lm
Light source power: 8,02 W
mA: 250 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >90 R9 72

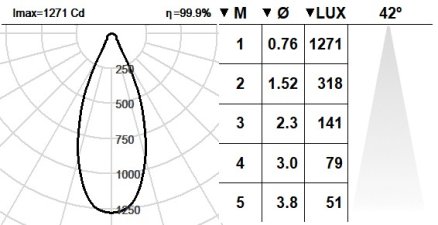

Beam angle: 42
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
LED reliability at nominal Ta = 25ºC: 60.000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 66mm
Luminaire diameter: 72mm
Weight: 0.41 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
