TEKNO 110TNS.1-R1081
Round design in diameter 55mm.
Aluminium trim powder painted in various finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0035].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps.
Luminaire luminous flux: 738lm
Luminaire connected power: 9.41 W
Luminaire efficiency: 78 lm/W
Light source luminous flux: 1085lm
Light source power: 8.5 W
mA: 250 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >90
Beam angle: 17
UGR: <19 under the below indicated parameters
Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.6
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: >53000h L80B50
Class: 2
IP: 20
Incandescent filament: 850

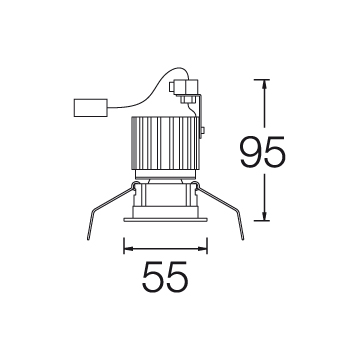

Recessed diameter: 48mm
Luminaire diameter: 55mm
Weight: 0.25 Kg
Electronic Accessories:
S: On/Off
D: DALI-2/switchDIM
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
