FOCUS 111FCS.1-R887

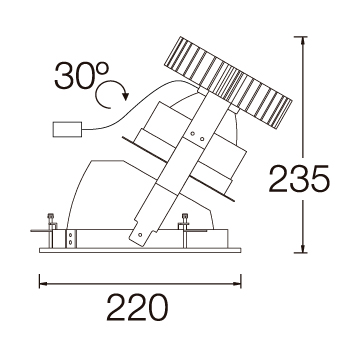

Adjustable to 30º.
Circular design in diameter 220mm.
Metalized specular aluminium reflector.
Facetted metalized interior reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0220].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0220].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0220].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
Luminaire luminous flux: 3597lm
Luminaire connected power: 38.97 W
Luminaire efficiency: 92 lm/W
Light source luminous flux: 5710lm
Light source power: 35 W
mA: 1050 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

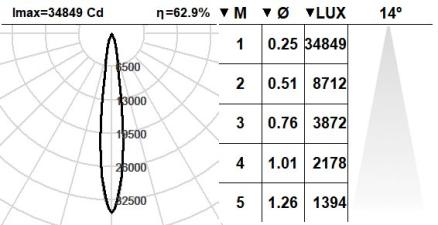

Beam angle: 14
Cd/Klm: 6103
Imax Cd: 34848
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 200mm
Luminaire diameter: 220mm
Weight: 1.8 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
