111QTC.1-R1185
111QTC
111QTC.1-R1185
111QTC.1-R1185

QUADRATIC



111QTC.1-R1185


Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or ambient lighting.
Square design available in 225mm x 225mm.
High-purity matt anodised aluminium reflector.
Powder painted die-cast aluminium frame available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.D0225].
Drop square glass accessory available in assorted colours [reference M1.C0225].
Drop square metal accessory available in assorted colours [reference M1.E0225].
LED frame accessory available in assorted colours [reference M1.D0225].
LED module Tunable White: 2700K-6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI/DSI.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thicknesses up to 30mm.

Luminous flux of the light source: 1410lm

Luminous flux of the luminaire:  917lm

Luminaire efficiency: 64 lm/W

Light source power: n W

Luminaire power: 14,3 W

mA: 350 mA

Colour temperature: 2700K-6500K

Chromaticity Tolerance: MacAdam 3

CRI: >90

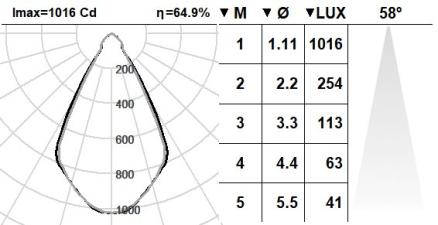

Beam angle: 58

Cd/ Klm: 719

UGR: <16

Photobiological safety group: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >60000h L90B10

Class: 2

IP: 20

Incandescent filament: 650°

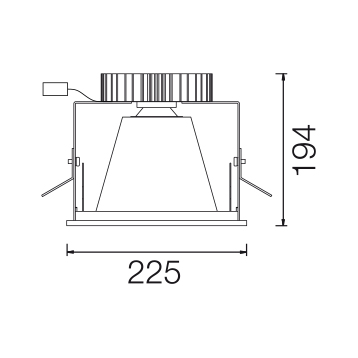

Embedding dimensions: 210x210

Luminaire dimensions: 225x225

Weight: 1.71 Kg

Electronic Equipment:
T: SwitchDIM/ColourSwitch/DALI/DSI
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
