CANDRA 111CND.1.02-I2817
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Circular design available in 1116mm diameter.
Powder painted one piece aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.).
Tridonic high energy efficiency printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 (two DALI addresses).
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
CANDRA can be combined with PLACE pendant downlights and LEDA surface-mounted downlights to get a harmonious finish.
Luminaire luminous flux: 21160lm
Luminaire connected power: 126,82 W
Luminaire efficiency: 167 lm/W
Light source luminous flux: 24045lm
Light source power: 114,99 W
mA: 550 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >80

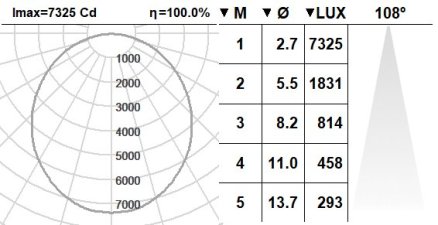

Beam angle: 108
Photobiological risk: 1
This product contains a light source of energy efficiency class: B
LED reliability at nominal Ta = 25ºC: 100.000h L80B10
Class: 1
IP: 20
Incandescent filament: 700
Recessed diameter: 1119mm
Luminaire diameter: 1116mm
Weight: 12.09 Kg
Electronic Accessories:
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
DDE: DALI-2/switchDIM+ 3 hours battery (DALI)
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
Downloads
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
