FOCUS 114FCS.1-R1185
Recessed ceiling-mounted downlight with directional inner light source to achieve an effective task or accent lighting.
Adjustable to 30º.
Circular design in diameter 190mm.
Metalized specular aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0190].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
LED module Tunable White: 2700K-6500k.
Remote driver supplied.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
Adjustable to 30º.
Circular design in diameter 190mm.
Metalized specular aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0190].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
LED module Tunable White: 2700K-6500k.
Remote driver supplied.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
DOWNLOADS
ACCESSORIES AND FINISHES

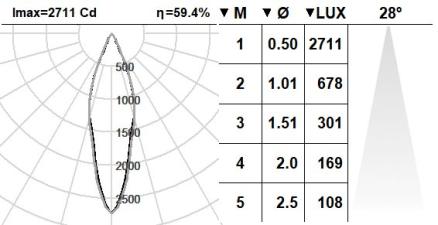

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 832lm
- Luminaire efficiency: 58 lm/W
- Light source luminous flux: 1410lm
- CRI: >90
- Colour temperature: 2700K-6500K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 28 º
- This product contains a light source of energy efficiency class: F
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
- Cd/Klm: 1918
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC

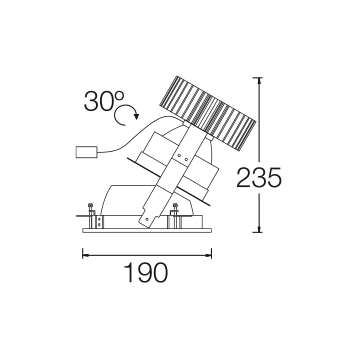

- Recessed diameter: 170mm
- Luminaire diameter: 190mm
- Height: 235 mm Kg
- Weight: 1.62 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 14,3 W
- Light source power: 11 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
T: Tunable White DALI-2/switchDIM/ColourSwitch
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Recessed diameter: 170mm
- Luminaire diameter: 190mm
- Height: 235 mm
- Weight: 1.62 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
