NUCLEONS 118NCL.1-R873
Circular design in diameter 130mm.
Sandblasted metalized Aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0130].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
Luminaire luminous flux: 1798lm
Luminaire connected power: 18.33 W
Luminaire efficiency: 98 lm/W
Light source luminous flux: 2430lm
Light source power: 17 W
mA: 500 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90

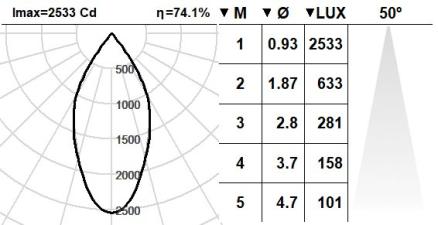

Beam angle: 50
Cd/Klm: 1042
Imax Cd: 2532
UGR: <19
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 120mm
Luminaire diameter: 130mm
Weight: 1.35 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
