F117TKN_118TKN
D117_118TKN DPnoimatge
118TKN.1-R1098

TEKNO 118TKN.1-R1098

CLASS2 IP20 FIL850 INST +RAL INFLA CE
Recessed ceiling-mounted small downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 110mm.
Tilt version, adjustable to 25º and 180º+180º rotation.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050]. Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminaire luminous flux: 1424lm

Luminaire connected power: 17.05 W

Luminaire efficiency: 84 lm/W

Light source luminous flux: 2225lm

Light source power: 15.4 W

mA: 450 mA

Colour temperature: 4000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

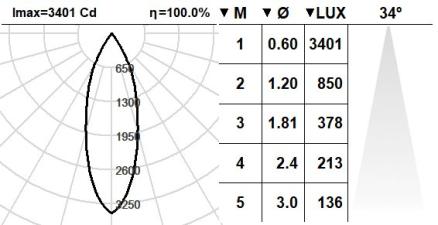

Beam angle: 34

UGR: <19 under the below indicated parameters

Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.3

Photobiological risk: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50.000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.34 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC)

SE: On/Off (AC/DC) + Battery 3h

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM + 3h battery

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 1 Upgradeable, replaceable, repairable icon 2
