CONICAL 118CNC.1-R1889

CLASS2 IP20 FIL850 INST +RAL INFLA CE
Recessed ceiling-mounted small downlight with symmetrical light distribution to achieve an effective task or general lighting.
Circular design in diameter 85mm.
Powder painted aluminium conical trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.H0085].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050]. Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.
F118CNC-119CNC

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

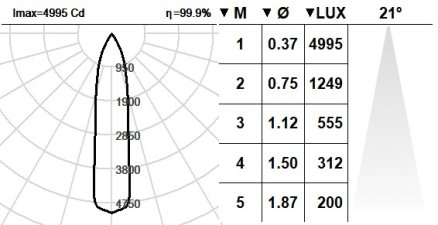

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 1327lm
  • Luminaire efficiency: 82 lm/W
  • Light source luminous flux: 1980lm
  • CRI: >90 R9 62
  • Colour temperature: 2700K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: 21 º
  • This product contains a light source of energy efficiency class: E
  • LED reliability at nominal Ta = 25ºC: 60.000h L90B10
118CNC.1-R1889

TECHNICAL DATA

  • Class: II
  • IP: 20
  • Incandescent filament: 850 ºC
  • Recessed diameter: 78 mm
  • Luminaire diameter: 85 mm
  • Height: 114 mm Kg
  • Weight: 0.45 Kg
D118_119CNC DPnoimatge

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 16,15 W
  • Light source power: 14,54 W
  • Constant current: 450 mA

ELECTRONIC EQUIPMENT:

  • K: On/Off (basic)

  • S: On/Off (AC/DC, NOT looping through capable)

  • SE: On/Off (AC/DC) + Battery 3h

  • D: DALI-2/switchDIM/corridorFUNCTION

  • DE: DALI-2/switchDIM + 3h battery

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

TECHNICAL DATA

  • Class: II
  • IP: 20
  • Incandescent filament: 850 ºC
  • Recessed diameter: 78 mm
  • Luminaire diameter: 85 mm
  • Height: 114 mm
  • Weight: 0.45 Kg
D118_119CNC DPnoimatge

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
