V20 119VTN.1-R881
Circular design with trimless appearance in diameter 180mm.
Specular metalized aluminium reflector.
Powder painted aluminium circle and interior trim available in various finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner ring should be painted the same RAL colour as the ceiling.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0180].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.
Luminaire luminous flux: 3042lm
Luminaire connected power: 25.33 W
Luminaire efficiency: 120 lm/W
Light source luminous flux: 3900lm
Light source power: 23 W
mA: 700 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

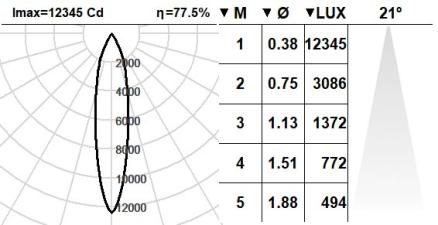

Beam angle: 21
Cd/Klm: 3165
Imax Cd: 12344
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 175mm
Luminaire diameter: 180mm
Weight: 1.57 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
