F115NCL
D115NCL_116NCL_117NCL_119NCL_120NCL_121NCL DP115NCL_116NCL_117NCL_119NCL_120NCL_121NCL
120NCL.1-R881

NUCLEONS 120NCL.1-R881

CLASS2 IP20 FIL850 INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 130mm.
Aluminium reflector facetted metalized.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0130].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminaire luminous flux: 3549lm

Luminaire connected power: 25.33 W

Luminaire efficiency: 140 lm/W

Light source luminous flux: 3900lm

Light source power: 23 W

mA: 700 mA

Colour temperature: 2700K

Chromaticity Tolerance: MacAdam 3

CRI: >80

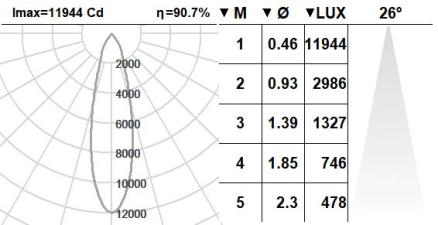

Beam angle: 26

Cd/Klm: 3063

Imax Cd: 11946

UGR: <18

Photobiological risk: 1

This product contains a light source of energy efficiency class: D

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 120mm

Luminaire diameter: 130mm

Weight: 1.35 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC + looping through)

SE: On/Off (AC/DC+looping) + 3h battery

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
