ACTIVO 120ACT.1-R2003
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or accent lighting.
Adjustable to 20º and 180º+180º rotation.
Circular design in diameter 165mm.
Aluminium reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted aluminium trim available in assorted finishes, customized RAL under request.
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through an aluminium heat sink diffuser.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 40mm.
Luminaire luminous flux: 1474lm
Luminaire connected power: 11,9 W
Luminaire efficiency: 124 lm/W
Light source luminous flux: 1620lm
Light source power: 10,66 W
mA: 350 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >90 R9 62

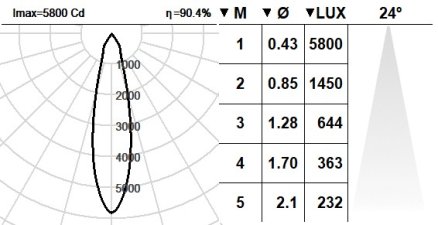

Beam angle: 24
Cd/Klm: 3580
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
LED reliability at nominal Ta = 25ºC: 60.000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 156mm
Luminaire diameter: 165mm
Weight: 1.55 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
