NUCLEONS



122NCL.1-R885


Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 130mm.
Sandblasted metalized Aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0130].
Remote driver supplied.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminous flux of the light source: 3440lm

Luminous flux of the luminaire:  2339lm

Luminaire efficiency: 92 lm/W

Light source power: 23 W

Luminaire power: 25.33 W

mA: 700 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

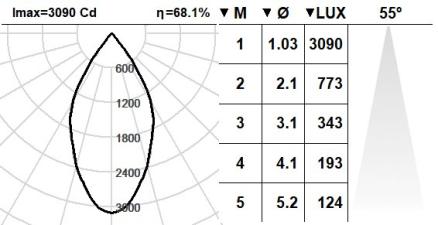

Beam angle: 55

Cd/ Klm: 898

Imax Cd: 3089

UGR: <20

Photobiological safety group: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850°

Recessed diameter: 120mm

Luminaire diameter: 130mm

Weight: 1.35 Kg

Electronic Equipment:
S: On/Off
SE: On/Off + Emergency Kit [class I]
D: DALI/DSI/switchDIM
DE: DALI/DSI/switchDIM+E-Kit  [class I]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I]
B: Bluetooth Casambi
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
