TEKNO 123TNS.1-R1081
Round design in diameter 85mm.
Swivel mounted version, adjustable to 20º and 180º rotation.
Body powder painted in various finishes, customized RAL under request.
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0035].
Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation via aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps.
Luminaire luminous flux: 760lm
Luminaire connected power: 9.41 W
Luminaire efficiency: 81 lm/W
Light source luminous flux: 1085lm
Light source power: 8.5 W
mA: 250 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >90

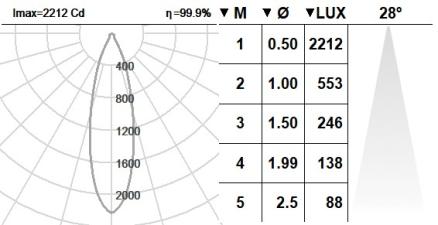

Beam angle: 28
UGR: <19 under the below indicated parameters
Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.7
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: >53000h L80B50
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 80mm
Luminaire diameter: 85mm
Weight: 0.35 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
Downloads
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
