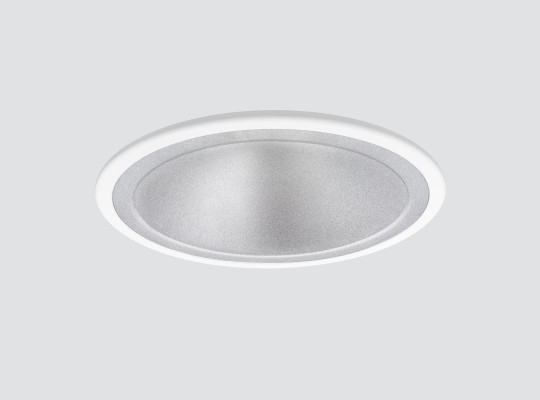

CELL 129CLL.1-R1185
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or general lighting.
Circular design in diameter 200mm.
High-purity sandblasted anodised aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Die-cast aluminium trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.E0200]. Polycarbonate diffuser as accessory to achieve IK10 protection.
Glass ring accessory available in assorted colours [reference F1.A0200].
Drop glass disk accessory available in assorted colours [reference M1.A0200].
Drop metal disk accessory available in assorted colours [reference M1.B0200].
Decorative LED ring accessory available in assorted colours [reference F1.B0200].
LED module Tunable White: 2700K-6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 30mm.
Circular design in diameter 200mm.
High-purity sandblasted anodised aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Die-cast aluminium trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.E0200]. Polycarbonate diffuser as accessory to achieve IK10 protection.
Glass ring accessory available in assorted colours [reference F1.A0200].
Drop glass disk accessory available in assorted colours [reference M1.A0200].
Drop metal disk accessory available in assorted colours [reference M1.B0200].
Decorative LED ring accessory available in assorted colours [reference F1.B0200].
LED module Tunable White: 2700K-6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 30mm.
DOWNLOADS
ACCESSORIES AND FINISHES

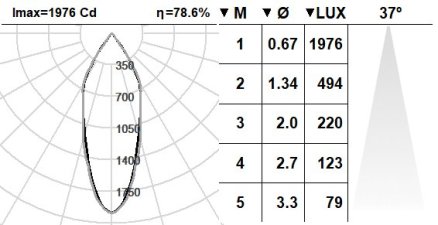

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1029lm
- Light source luminous flux: 1410lm
- CRI: >90
- Colour temperature: 2700K-6500K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 37 º
- This product contains a light source of energy efficiency class: E
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Recessed diameter: 190mm
- Luminaire diameter: 200mm
- Height: 163 mm Kg
- Weight: 1.56 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 14,3 W
- Light source power: 11 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
T: Tunable White DALI-2/switchDIM/ColourSwitch
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Recessed diameter: 190mm
- Luminaire diameter: 200mm
- Height: 163 mm
- Weight: 1.56 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
