CELL 130CLL.1-R1186
Circular design in diameter 200mm.
High-purity sandblasted anodised aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Die-cast aluminium trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.E0200]. Polycarbonate diffuser as accessory to achieve IK10 protection.
Glass ring accessory available in assorted colours [reference F1.A0200].
Drop glass disk accessory available in assorted colours [reference M1.A0200].
Drop metal disk accessory available in assorted colours [reference M1.B0200].
Decorative LED ring accessory available in assorted colours [reference F1.B0200].
LED module Tunable White: 2700K-6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 30mm.
Luminaire luminous flux: 1445lm
Luminaire connected power: 19,8 W
Light source luminous flux: 1980lm
Light source power: 16 W
mA: 500 mA
Colour temperature: 2700K-6500K
Chromaticity Tolerance: MacAdam 3
CRI: >90

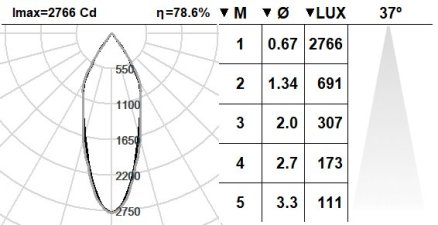

Beam angle: 37
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
LED reliability at nominal Ta = 25ºC: 60.000h L90B10
Class: 2
IP: 20
Incandescent filament: 650
Recessed diameter: 190mm
Luminaire diameter: 200mm
Weight: 1.56 Kg
Electronic Accessories:
T: Tunable White DALI-2/switchDIM/ColourSwitch
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
