DISTRICT 100 131DST.4.01-I1456






Recessed linear downlights with symmetrical light distribution.
Linear fixture in 589mm length, width of 75mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Interior optic to control the light.
Built-in driver, included. Ambient temperature: up to 50ºC.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
IP67 venting valve to reduce condensation.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
The electric cable inlet is on one end of the luminaire. Luminaires can also be supplied with two cable inlets, one on each side, for serial installation, reference F3.L1.DST.
Concrete housing in galvanised metal accessory reference F3.F.0589DST.
The driver is on the inside of the fixture.
Passive temperature management.
Linear fixture in 589mm length, width of 75mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Interior optic to control the light.
Built-in driver, included. Ambient temperature: up to 50ºC.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
IP67 venting valve to reduce condensation.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
The electric cable inlet is on one end of the luminaire. Luminaires can also be supplied with two cable inlets, one on each side, for serial installation, reference F3.L1.DST.
Concrete housing in galvanised metal accessory reference F3.F.0589DST.
The driver is on the inside of the fixture.
Passive temperature management.

DOWNLOADS
ACCESSORIES AND FINISHES

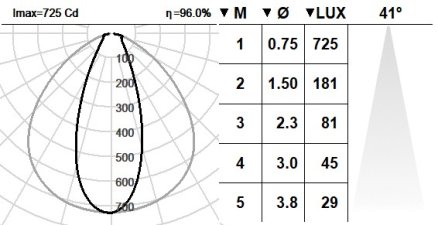

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1029lm
- Luminaire efficiency: 145 lm/W
- Light source luminous flux: 1225lm
- CRI: >80
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 43
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 100.000h L80B10
- Cd/Klm: 815

TECHNICAL DATA
- Class: I
- IP: 66
- Incandescent filament: 650 ºC
- Embedding dimensions: 579x65mm
- Luminaire dimensions: 589x75mm


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 7,08 W
- Light source power: 6,4 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 15m ]
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 66
- Incandescent filament: 650 ºC
- Embedding dimensions: 579x65mm
- Luminaire dimensions: 589x75mm


STANDARD FINISHES
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
