F102NCL_SLA
D132NCL_SLA DP132NCL_SLA
132NCL.1-R667

NUCLEONS 132NCL.1-R667

CLASS2 IP20 FIL850 INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 110mm.
White powder painted aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.J0110].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050].
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminaire luminous flux: 872lm

Luminaire connected power: 11.27 W

Luminaire efficiency: 77 lm/W

Light source luminous flux: 1010lm

Light source power: 10 W

mA: 300 mA

Colour temperature: 4000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

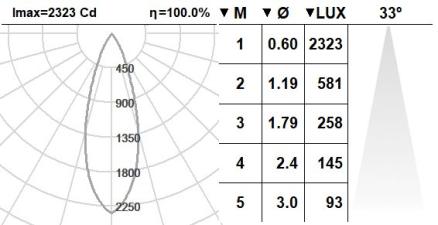

Beam angle: 33

UGR: <16

Photobiological risk: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

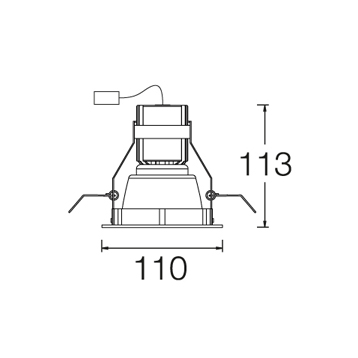

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.31 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC)

SE: On/Off (AC/DC) + Battery 3h

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM + 3h battery

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
