NUCLEONS



134NCL.1-R676


Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 110mm.
Tilt version, adjustable to 20º.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Remote driver included.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminous flux of the light source: 1270lm

Luminous flux of the luminaire:  885lm

Luminaire efficiency: 67 lm/W

Light source power: 12.2 W

Luminaire power: 13.3 W

mA: 350 mA

Colour temperature: 4000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

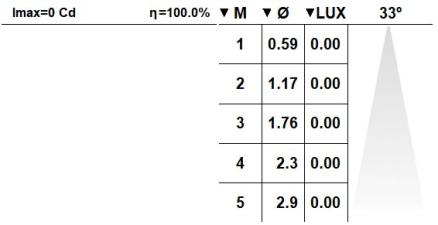

Beam angle: 33

UGR: <16

Photobiological safety group: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850°

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.31 Kg

Electronic Equipment:
S: On/Off
SE: On/Off + Emergency Kit [class I][E-KIT embedding diameter: 84mm]
D: DALI/DSI/switchDIM
DE: DALI/DSI/switchDIM+E-Kit [class I][E-KIT embedding diameter: 84mm]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I][E-KIT embedding diameter: 84mm]
B: Bluetooth Casambi
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
