ATOMIC 138ATM.1-R1185
Circular design in diameter 150mm.
High-purity aluminium reflector in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0150].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0150].
Glass ring accessory available in assorted colours [reference F1.A0150].
Drop glass disk accessory available in assorted colours [reference M1.A0150].
Drop metal disk accessory available in assorted colours [reference M1.B0150].
Decorative LED ring accessory available in assorted colours [reference F1.B0150].
LED Module Tunable White: 2700K - 6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
Luminaire luminous flux: 1283lm
Luminaire connected power: 14,3 W
Luminaire efficiency: 90 lm/W
Light source luminous flux: 1410lm
Light source power: 11 W
mA: 350 mA
Colour temperature: 2700K-6500K
Chromaticity Tolerance: MacAdam 3
CRI: >90

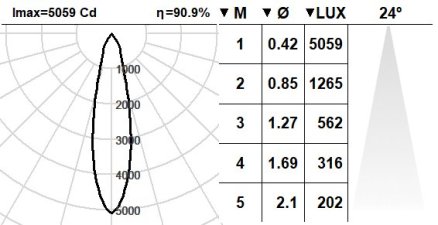

Beam angle: 24
Imax Cd: 6498
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >60000h L90B10
Class: 2
IP: 20
Incandescent filament: 650
Recessed diameter: 140mm
Luminaire diameter: 150mm
Weight: 1.28 Kg
Electronic Accessories:
T: DALI-2/switchDIM/ColourSwitch
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
