ADAPT 139ADP.1-R2306_/ _ _ _
Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.
Specially developed to solve the installation difficulties in the process of replacing light fixtures.
Customized exterior trim diameter from 110 mm up to 130 mm, depending on the installation needs.
This luminaire is suitable for recessed diameters ranging from 100mm to 119mm.
High-purity aluminium reflector sandlbasted metalized.
Powder painted aluminium trim available in assorted finishes, customized RAL under request.
Remote driver supplied.
Electronic standard options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation via aluminium heatsink.
Ceiling-mounted using galvanised steel support with spring clamps for an easy installation.
Specially developed to solve the installation difficulties in the process of replacing light fixtures.
Customized exterior trim diameter from 110 mm up to 130 mm, depending on the installation needs.
This luminaire is suitable for recessed diameters ranging from 100mm to 119mm.
High-purity aluminium reflector sandlbasted metalized.
Powder painted aluminium trim available in assorted finishes, customized RAL under request.
Remote driver supplied.
Electronic standard options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation via aluminium heatsink.
Ceiling-mounted using galvanised steel support with spring clamps for an easy installation.
DOWNLOADS
ACCESSORIES AND FINISHES

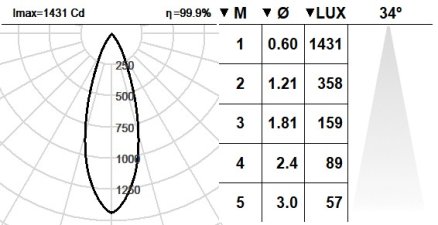

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 561lm
- Luminaire efficiency: 105 lm/W
- Light source luminous flux: 590lm
- CRI: >90 R9 54
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 33 º
- This product contains a light source of energy efficiency class: F
- LED reliability at nominal Ta = 25ºC: 54.000h L90B10
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 100<>119mm
- Luminaire diameter: 110<>130mm
- Height: 108 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 5,35 W
- Light source power: 4,8 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM + 3h battery
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 100<>119mm
- Luminaire diameter: 110<>130mm
- Height: 108 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
