F104NCL
D147_148NCL DPnoimatge
148NCL.1-R1098

NUCLEONS 148NCL.1-R1098

CLASS2 IP20 FIL850 INST +RAL INFLA CE

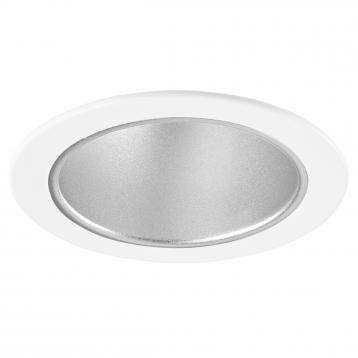

Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 110mm.

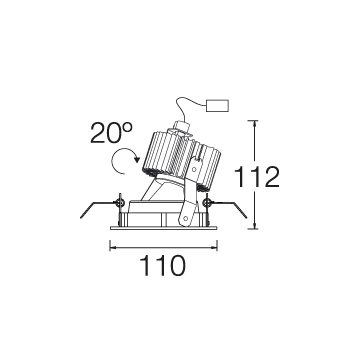

Tilt version, adjustable to 20º.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted by spring clamps for easy installation, ceiling thickness up to 25mm.

Luminaire luminous flux: 1469lm

Luminaire connected power: 17.05 W

Luminaire efficiency: 86 lm/W

Light source luminous flux: 2225lm

Light source power: 15.4 W

mA: 450 mA

Colour temperature: 4000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

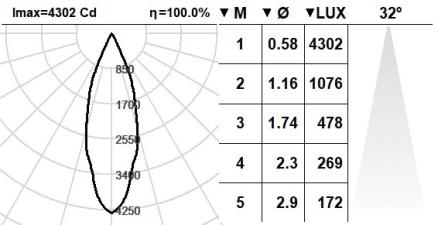

Beam angle: -

Photobiological risk: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50.000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 100mm

Luminaire diameter: 110mm

Weight: 0.31 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC)

SE: On/Off (AC/DC) + Battery 3h

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM + 3h battery

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 1 Upgradeable, replaceable, repairable icon 2
