BARIS 100 150BRS.1-I1437
Linear fixture in 303mm length and in a width of 58mm.
Protection rating against dust and moisture: complete IP54.
Protection rating of resistance to harmful mechanical impacts: IK08.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
Accessory for serial installation, reference F3.L1.BRS.
DOWNLOADS
ACCESSORIES AND FINISHES

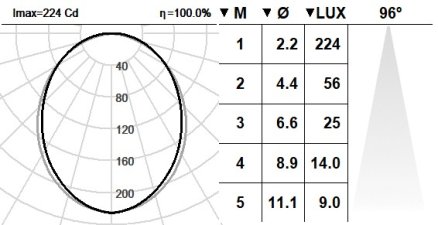

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 562lm
- Luminaire efficiency: 71 lm/W
- Light source luminous flux: 1060lm
- CRI: >80
- Colour temperature: 4000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 100 º
- This product contains a light source of energy efficiency class: B
- LED reliability at nominal Ta = 25ºC: 100.000h L80B10
UGR: C0º = 26,8 | C90º = 26,1 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 54
- Incandescent filament: 650 ºC
- Embedding dimensions: 292x47mm
- Luminaire dimensions: 303x58mm
- Height: 78 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 7,9 W
- Light source power: 5,41 W
- Constant current: 250 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off
-
D: DALI-2/switchDIM
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 54
- Incandescent filament: 650 ºC
- Embedding dimensions: 292x47mm
- Luminaire dimensions: 303x58mm
- Height: 78 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
